The McArthur Evo Centre Pocket Glazing System is the most popular and flexible of the Alspec® Commercial range. Available in two frame depths, 101.6mm and 150mm x 44.4mm. Ideal for shopfront use, it is widely favoured by architects and designers for a multitude of applications.

With it’s straight cuts and centre pocket glazing the McArthur not only looks good, but is easy to fabricate and easy to install. McArthur is suitable for a range of glass thicknesses with self draining sub sills that solve water leakage problems. The McArthur also provides a seamless interface with Alspec’s extensive product offer.

Key Features

  • Sharp unbroken lines
  • Centre glazed
  • Robust frame
  • Excellent weathering performance
  • 101.6mm and 150mm x 44.5mm framing system
  • 19mm glazing pocket accepts up to 14.5mm single glazed
  • Colour coded glazing wedges for ease of identification

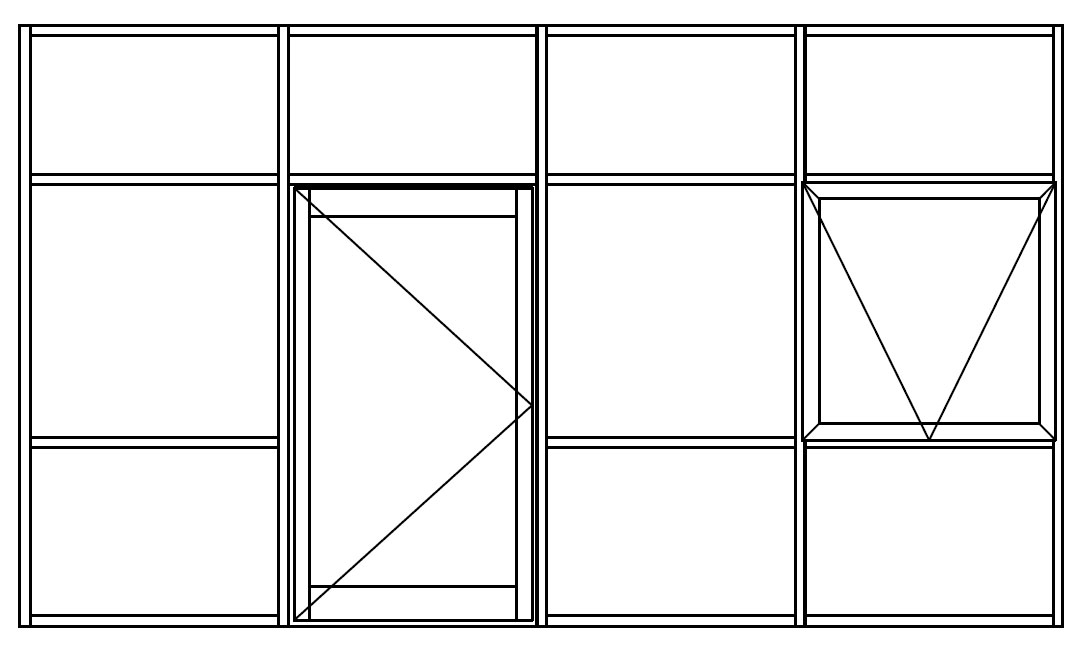

  • Easily adapts to Alspec’s awnings and hinged doors

Technical Specifications

Frame Dimensions
Option 1 101.6 x 44.5mm
Option 2 150 x 44.5mm
Maximum Recommended Sizes 101.6mm Frame 150mm Frame
Height 4200mm 5100mm
Width 2200mm 2400mm
Glazing Details (both)
Glass Position Centre
Single Glazed 6 – 14.5mm
Maximum Product Performance 101.6mm Frame 150mm Frame
SLS (Pa) 3000 3000
ULS (Pa) 7200 7400
Water (Pa) 1000 900
Acoustic Performance(both)
Glass Type Rw (C; Ctr)
6.38mm Laminate 32 (-1,-2) dB
